Arduino UNO High Precision Counting Scale

Everyone needs a good scale in kitchen, what better than to build a high precision scale with the UNO?

Story

This is one of my very first Arduino projects. This is a high precision scale based on the HX711 module, with different operating modes.

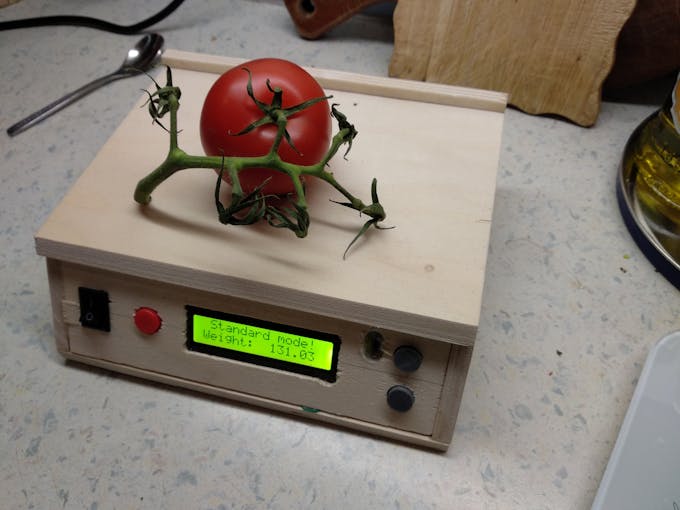

It can measure weight in the normal mode:

Measuring weight

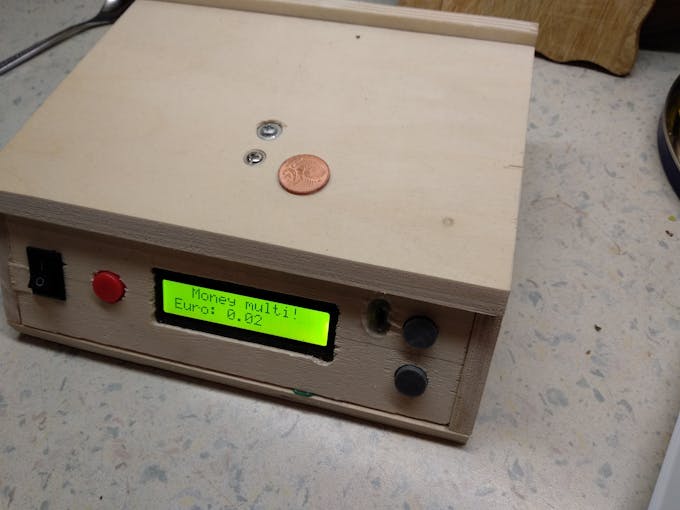

Count coins that are placed on top, one by one:

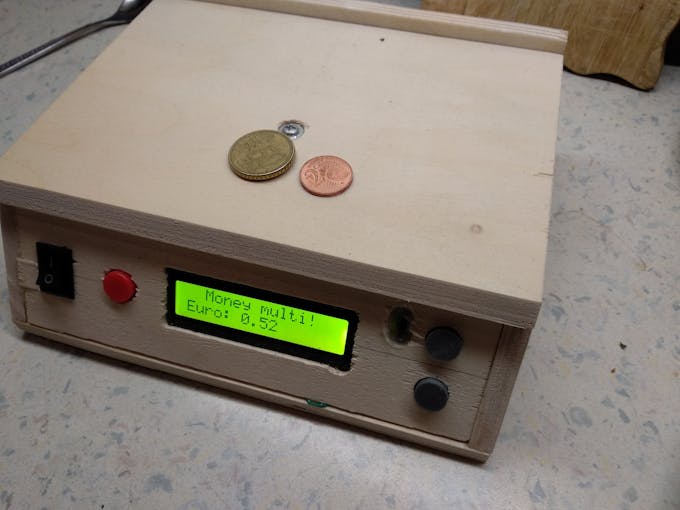

There's also a mode where you can place a coin and the program will calculate its weight. You can then place as many coins as you want, either one by one or all together, and the scale calculates the amount of money and how many coins were placed on top.

The same works for any other item and this mode is called "items mass."

Here is a video tutorial how to build one. It is in Russian, but I hope you will still enjoy it!

https://www.hackster.io/mPelectronic/high-precision-scale-with-arduino-6fce6bhttps://www.hackster.io/mPelectronic/high-precision-scale-with-arduino-6fce6b

Code

Arduino uno scale test

Arduino

The main software is divided into two parts, weighing and counting function.
During the boot animation I entered a subroutine for the scale calibration function. The calibration data is stored in the Euprom of Arduino for subsequent uses.

#include "HX711.h"
#include"math.h"
#include <EEPROMex.h>
#include <EEPROMVar.h>
#include <LiquidCrystal.h>
#define BUTTON 7
#define LED 13
#define TAREBUTTON 10
#define buzzer 8
// HX711.DOUT - pin #A2
// HX711.PD_SCK - pin #A3
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

HX711 scale(A2, A3); // parameter "gain" is ommited; the default value 128 is used by the library

long somma1=0;
float I=0;
int a;
float b;
float calibval1;
float calibval2;
float media2=0;
float media1=0;
long somma2=0;
float pmax= 900;
int val=0;
int val1=0; //valore del pulsante di tara
float t =0;
float g=0;
void setup() {
  scale.set_scale();
  scale.tare();
  pinMode (buzzer, OUTPUT);
  tone(buzzer,440,1000);
  delay(500);
  noTone(buzzer);
  delay(200);
  tone (buzzer,330,1000);
  delay(1000);
  noTone(buzzer);
Serial.begin (9600);
  lcd.begin(16, 2);
  lcd.print ("Fede Bil");
  lcd.setCursor( 0,1);
  lcd.print ("ver.1.0 :)");
   for (int positionCounter = 0; positionCounter < 6; positionCounter++) {
    // scroll one position left:
    lcd.scrollDisplayRight();
    // wait a bit:
    delay(450);}
     for (int positionCounter = 0; positionCounter < 6; positionCounter++) {
    // scroll one position left:
    lcd.scrollDisplayLeft();
    // wait a bit:
    delay(450);}
  delay(3000);
  lcd.clear ();
  lcd.print ("Press Button 2");
  lcd.setCursor(0,1);
  lcd.print("to calibrate");
  delay(1500);
 pinMode(LED, OUTPUT);
 pinMode (TAREBUTTON,OUTPUT); //IMPOSTA IL PULSANTE DI TARA
 pinMode(BUTTON, INPUT);     // imposta il pin digitale come input
val=digitalRead (BUTTON);
if (val==HIGH){
  tone(buzzer,1047,1000);
digitalWrite(LED, HIGH);
calibrazione();}
else {
  tone(buzzer,660,500);
Serial.println (EEPROM.readFloat(10)); // restituisce il valore float memorizzato all'indirizzo indicato Ricarica calibval1
calibval2= (EEPROM.readFloat(10));
Serial.print ("calibval2=");
Serial.println (calibval2);
scale.set_scale (calibval2);
}}

void loop() {

pippo:  I= (scale.get_units(10));
Serial.println(I);
if (I < 1 &&I>0)
{ val1= digitalRead (TAREBUTTON);
if (val1==HIGH){
  tone(buzzer,622,1000);
  lcd.clear();
  lcd.print ("Tara");
  delay (1000);
  t= scale.get_units(10);
  g=round(t);
  scale.tare();}
  lcd.clear();
  lcd.print("d=0,5g");
  //lcd.setCursor(9,0);
 lcd.setCursor(0,1);
  lcd.print("0.00");
  lcd.setCursor(9,0);
  lcd.print ("d=0.2g");
  lcd.setCursor (9,1);
  lcd.print(I);
  delay(500);
  Serial.println ("0.00");
   val=digitalRead (BUTTON);
  if (val==HIGH){
  tone(buzzer,1047,500);
digitalWrite(LED, HIGH);
menu();}
else {
}
 goto pippo;
}
val1= digitalRead (TAREBUTTON);
if (val1==HIGH){
  tone(buzzer,622,1000);
  lcd.clear();
  lcd.print ("Tara");
  delay (1000);
  t =scale.get_units(10);
   g=round(t);
  scale.tare();
 val=digitalRead (BUTTON);
  if (val==HIGH){
  tone(buzzer,1047,500);
digitalWrite(LED, HIGH);
menu();}
else {
}}
  int c= (I*10);
  int e = (I*10);
 // e=round (c);
 int peso_div = (e+1)-((e+1)%2);
int  peso_div_5 = (c+2)-((c+2)%5);
  float f = (peso_div);
  float peso2 = (f/10);
   float d = (peso_div_5);
  float pesofin=(d/10);
   if (pesofin > pmax)
   {tone(buzzer,1047,2000);
     lcd.clear();
   lcd.print ("Overload");
    goto pippo;}
   lcd.clear();
   lcd.setCursor (0,0);
    lcd.print ("d=0,5g");
    lcd.setCursor(0, 1);
    lcd.print (pesofin);
    lcd.setCursor(9,0);
    lcd.print ("d=0.2g");
    lcd.setCursor (9,1);
    lcd.print (peso2);
    delay(150);
    val=digitalRead (BUTTON);
if (val==HIGH){
  tone(buzzer,1047,500);
digitalWrite(LED, HIGH);
lcd.clear();
menu();}
else {
}
}
